Premier 0.5 linear LED lighting system components laid out flat, including aluminum channel extrusions in black and silver, 1", 2", 12" LED moudles, LED driver, end caps, connectors, jumpers and power feeds
0.5 Concealed Linear

Pre-Release: 0.5″ Linear System

Features: Recessed in Millwork, Surface Mount, Solder-free installation

Lumens: 400 lm/ft

Color Quality: 93 CRI, 2-step SDCM

Color Temperature: 2000K, 2400K, 2700K, 3000K, 3500K

Beam Spread: Dot-Free

Dimming: Combo 0-10V/ TRIAC/ELV (1%)

Input: 120/277V

Installation: New Construction, Millwork, Retrofit

Finish: Fixture: Black Surface Channel: White, Custom Color

Rating: Energy Star, Title 24 JA8, Declare Listed, UL Listed for Damp Location, ASTM E283 Certified Air Tight, RoHS Compliant

Warranty: 5 year; 50,000 hours



DMF True 1 1-inch aperture recessed LED downlight family components including housing, drivers, and trim options
True 1

Pre-Release: 1″ Downlight Family

Features: Recessed, Adjustable, Warm Dim

Lumens: Static CCT – 1000 lm (15W), Warm Dim – 750 lm (15W),

Color Quality: 93 CRI, 2-step SDCM

Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim

Beam Spread: 30° Spot, 40° Flood, 50° Wide Flood

Dimming: Combo 0-10V/ TRIAC/ELV (1%)

Input: 120/277V

Installation: New Construction, Flangeless Mud-In

Trims: Round

Finish: Black

Rating: Energy Star, Title 24 JA8, Declare Listed, UL Listed for Damp Location, ASTM E283 Certified Air Tight, RoHS Compliant

Warranty: 5 year; 50,000 hours



M Series 4" IC Rated Family

4” Downlight

Features: Recessed, Adjustable, Wall Wash, Warm Dim, Multiple, Emergency, Decorative, Turtle Friendly, Low Profile – 2.5″

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500​ lm (14.3W)

Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White, Turtle Friendly

Trims: Round, Square, Hyperbolic, Pinhole, Wall Wash, Flangeless, Decorative, Emergency, Non-Conductive Dead Front, Coastal Marine Grade

Ratings: Energy Star, Title 24 JA8, Declare Listed, Wet Location, Fire Rated, STC/IIC Sound Rated, Chicago Plenum, IC, NSF/ANSI 2 Splash Zone Safe, IP66

X Series

2” Downlight

Features: Recessed, Adjustable, Wall Wash, Decorative, Warm Dim, Tunable White, Turtle Friendly

Lumens (Downlight): 500 lm (9.5W), 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W)

Lumens (Adjustable): 500 lm (9.5W), 750 lm (9.5W), 1000 lm (12.5W)

Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White, Turtle Friendly

Trims: Round, Square, Wall Wash, Flangeless, Pinhole, Hyperbolic, Decorative

Rating: Energy Star, Title 24 JA8, Declare Listed, Wet Location, Chicago Plenum, IC, Dark Sky, NSF/ANSI 2

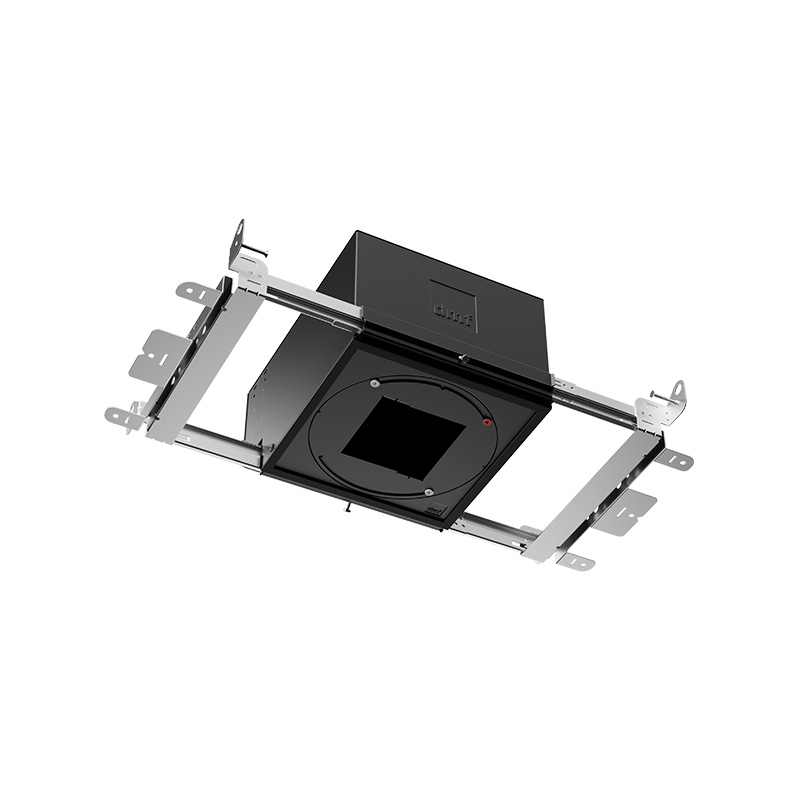

2" Square New Construction

X Series Housing

Features: Recessed

Ratings: IC, ASTM E283 Air Tight, Chicago Plenum

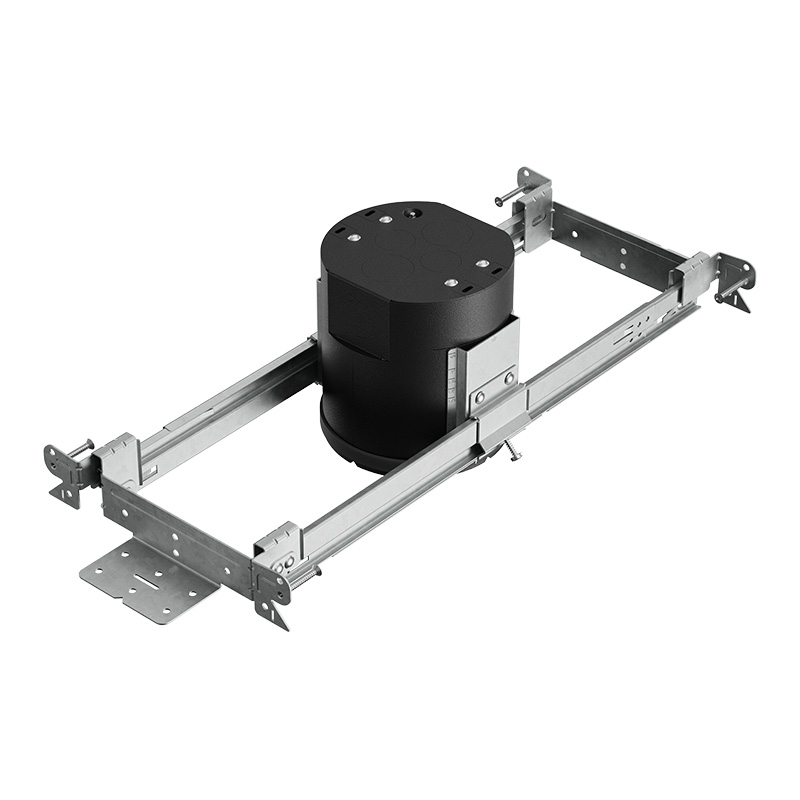

4" Round New Construction

M Series Residential Housing

Features: Recessed, Patented Bar Hangers

Ratings: Fire Rated, STC/IIC Sound Rated, Chicago Plenum, IC

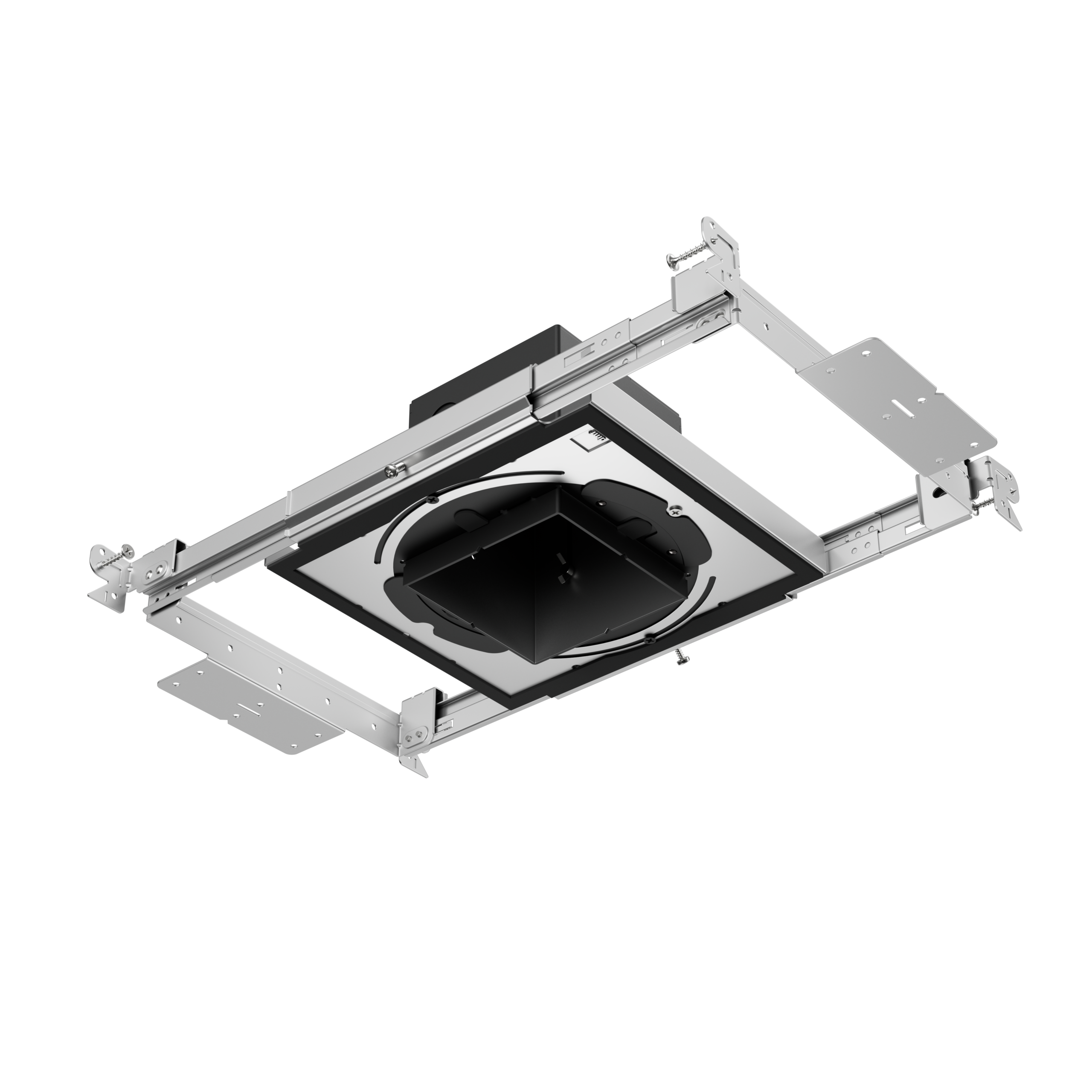

4" Square New Construction

M Series Housing

Features: Recessed, Patented Bar Hangers

Ratings: Fire Rated, STC/IIC Sound Rated, Chicago Plenum, IC

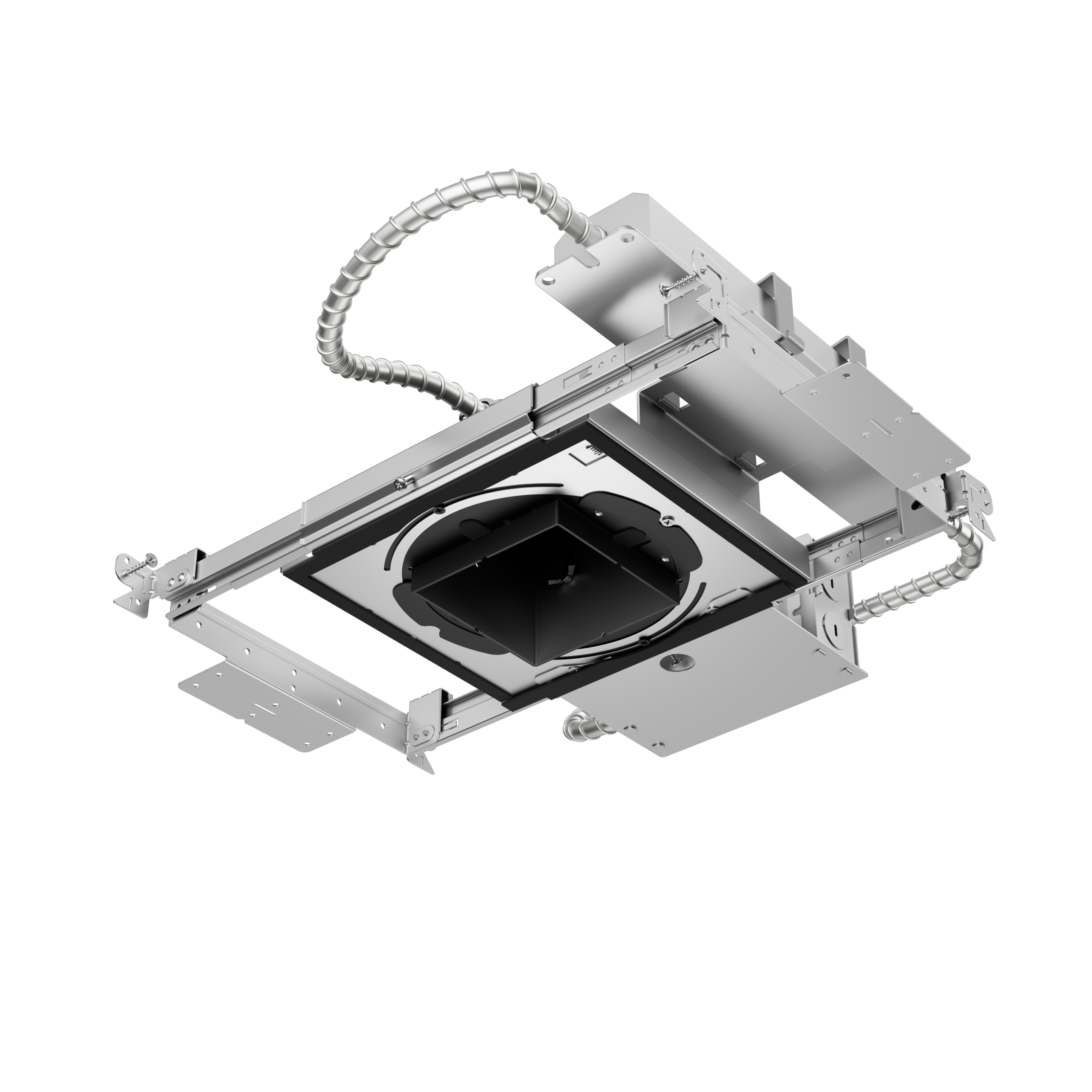

4" Square NC with EM

M Series Housing

Features: Emergency, Recessed, Patented Bar Hangers

Ratings: Fire Rated, STC/IIC Sound Rated, IC

M Series

Most Versatile 4" Lighting Solutions

M Series 4" IC Rated Family

4” Downlight

Features: Recessed, Adjustable, Wall Wash, Warm Dim, Multiple, Emergency, Decorative, Turtle Friendly, Low Profile – 2.5″

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500​ lm (14.3W)

Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White, Turtle Friendly

Trims: Round, Square, Hyperbolic, Pinhole, Wall Wash, Flangeless, Decorative, Emergency, Non-Conductive Dead Front, Coastal Marine Grade

Ratings: Energy Star, Title 24 JA8, Declare Listed, Wet Location, Fire Rated, STC/IIC Sound Rated, Chicago Plenum, IC, NSF/ANSI 2 Splash Zone Safe, IP66

M Series Commercial

4” Downlight

Features: Recessed, Adjustable, Wall Wash, Decorative, Warm Dim, Tunable White, Emergency, Integrated Fixture Control

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W), 2000 lm (24.5W), 2500 lm (27.5W), 3000 lm (34.0W), 3500 lm (40.5W)

Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Round, Square, Hyperbolic, Pinhole, Wall Wash, Flangeless, Decorative, Vandal, Emergency, Coastal Marine Grade

Ratings: Energy Star, Declare Listed, RoHS Compliant, Wet Location, NSF/ASNI 2 Splash Zone Safe Listed, IP66, IK10, Anti-Microbial, IP66

M Series Multiples

4” Multiples

Features: Recessed, Adjustable, Multiple

Lumens: 750 lm (9.5W), 1000 lm (12.5W) per head, Up to 3000lm per Fixture

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Rectangle, Flangeless

Ratings: Energy Star, Title 24 JA8, Declare Listed, Damp Location, NSF/ANSI 2 Splash Zone Safe

M Series Retrofit

4″ 5″ 6″ Retrofit Offerings

Features: Solutions to adapt to existing 4″, 5″, 6″ cans and 4O and 4S junction boxes

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 (14.3W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim (3000K – 1800K)

Trims: Round, Square, Wall Wash, Flangeless, Pinhole, Hyperbolic, Decorative, Baffle

Rating: Energy Star, Title 24 JA8, Declare Listed, Wet Location, Dark Sky, NSF/ANSI 2, RoHS Compliant

4" Cylinder

4″ Cylinder (Formerly DCC/M Series)

Features: Surface Mount, Pendant, Wall Mount, Adjustable, Up/Down, Warm Dim, Emergency, Turtle Friendly

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W), 2000 lm (24.5W), 2500 lm (37W), 3000 lm (40W)

Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White, Turtle Friendly

Trims: Round, Wall Wash, Snoot, Decorative, Shades

Ratings: Energy Star, Title 24 JA8, Declare, IP65 Wet Location, NSF/ANSI 2 Splash Zone Safe, Dark Sky

4" Decorative Pendant with Shades

4″ Cylinder with Shades

Features: Unique Shades, Highly Customizable

Size: 4 inch, 8 inch, 12 inch

Suspension Length: Standard: 24″ or 48″; Custom: Up to 156″ (Cord) or 96″ (Stem)

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W), 2000 lm (24.5W), 2500 lm (27.5W), 3000 lm (34W)

Trims:  Narrow Shade, Medium Shade, Wide Shade

Ratings: Energy Star, Title 24 JA8, Declare, NSF/ANSI 2 Splash Zone Safe, Dark Sky, UL Listed

M Series Coastal IP65/Marine Grade Cylinder

4″ Cylinder

Features: Surface Mount, Pendant, Wall Mount, Direct/Indirect, Warm Dim, Turtle Friendly

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W), 2000 lm (24.5W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Turtle Friendly

Trims: Round

Ratings: IP65, Marine Grade Finish, Energy Star, Title 24 JA8, Declare Listed, Dark Sky Sea Turtle Sensitive Approved, RoHS Compliant
X Series

High Performance 2" Lighting Solutions

X Series

2” Downlight

Features: Recessed, Adjustable, Wall Wash, Decorative, Warm Dim, Tunable White, Turtle Friendly

Lumens (Downlight): 500 lm (9.5W), 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W)

Lumens (Adjustable): 500 lm (9.5W), 750 lm (9.5W), 1000 lm (12.5W)

Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White, Turtle Friendly

Trims: Round, Square, Wall Wash, Flangeless, Pinhole, Hyperbolic, Decorative

Rating: Energy Star, Title 24 JA8, Declare Listed, Wet Location, Chicago Plenum, IC, Dark Sky, NSF/ANSI 2

X Series 3" Cylinder

3″ Cylinder

Features: Surface Mount, Pendant, Wall Mount, Up/Down, Wall Wash, Warm Dim, Tunable White, Turtle Friendly

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W)

Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White, Turtle Friendly

Trims: Round, Snoot, Wall Wash, Decorative

Ratings: Energy Star, Title 24 JA8, Wet Location

X Series 3" Decorative Pendant with Shades

3″ Cylinder with Shades

Features: Unique Shades, Highly Customizable

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Narrow Shade, Medium Shade, Wide Shade

Ratings: Energy Star, Title 24 JA8, Declare, NSF/ANSI 2 Splash Zone Safe, Dark Sky, UL Listed

X Series Coastal IP65/Marine Grade Cylinder

3″ Cylinder

Features: Surface Mount, Pendant, Wall Mount, Direct/Indirect, Warm Dim, Turtle Friendly

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Turtle Friendly

Trims: Round

Ratings: IP65, Marine Grade Finish, Energy Star, Title 24 JA8, Declare Listed, Dark Sky Sea Turtle Sensitive Approved, RoHS Compliant
H Series

High Value 3" & 4" Lighting Solutions

H Series

3″ and 4″ Downlight

Features: Recessed, Surface Mount, Adjustable, Natural Warm Dim

Lumens: 350 lm (5W), 750 lm (9W), 950 lm (12W)

Color Temperature: Natural Warm Dim 3000K-2200K & 2700K-1800K

Trims: Round, Square, Flush, Adjustable

Ratings: Energy Star, Title 24 JA8, Declare Listed, Wet Location, IC, NSF/ANSI 2

H Series Cylinder

3″ Cylinder

Features: Pendant, Wall Mount, Natural Warm Dim

Lumens: 350 lm (5W), 750 lm (9W), 950 lm (12W)

Color Temperature: 2700K, 3000K, Natural Warm Dim 3000K-2200K

Trims: Round Standard / 5.5″ Decorative Trim

Ratings: Energy Star, Title 24 JA8, Declare Listed, IP65 Wet Location (Wall Mount), NSF/ANSI 2

H Series Retrofit

4″ Retrofit Offerings

Features: Solutions to adapt to existing 4″ housings and 4O junction boxes

Lumens: 350 lm (5W), 750 lm (9W), 950 lm (12W)

Color Temperature: 2700K, 3000K, Natural Warm Dim 3000K-2200K

Trims: Round, Square, Flush, Adjustable

Ratings: Energy Star, Title 24 JA8, Declare Listed, Wet Location
C Series

Quick Shipping, Simple 4" & 6" Lighting Solutions

C Series

4″ and 6″ Downlight

Features: Recessed, Non-Conductive Dead Front, DMF LightSpeed

Lumens: 1000 lm (13.6W), 1500 lm (17W), 2000 lm (24.5W)

Color Temperature: 3000K, 3500K, 4000K

Trim: Round

Ratings: Energy Star, Declare Listed, Wet Location, NSF/ANSI 2, UL Listed, RoHS, Non-Conductive Dead Front

C Series Cylinder

4″ Cylinder

Features: Pendant, Cord or Stem Mount, DMF LightSpeed

Lumens: 1000 lm (13.6W), 1500 lm (17W), 2000 lm (24.5W)

Color Temperature: 3000K, 3500K, 4000K

Trim: Standard

Ratings: Energy Star, Declare Listed, NSF/ANSI 2, UL Listed
Surface

Slim Profile, Junction Box Solutions

S Series

Surface Mount

Features : Surface Mount, Emergency

Lumens : 750 lm (9W), 1000 lm (12W), 1500 lm (17W)

Color Temperature : 2700K, 3000K, 3500K

Trims : 4″ Round, 4″ Square, 8″ Round, 18″ Linear

Ratings : Energy Star, Title 24 JA8, Wet Location, IC, Closet Rated

A Series

Illuminated Signage

Features: Surface Mount

Lumens: 50 lm (3W)

Color Temperature: 2700K, 3000K

Ratings: Energy Star, Title 24, Damp Listed, ADA Compliant

S Series Retrofit

Surface Mount Retrofit Offerings

Features: Solutions to adapt to existing 3O, 4O, and 4R junction boxes

Lumens : 750 lm (9W), 1000 lm (12W), 1500 lm (17W)

Color Temperature : 2700K, 3000K, 3500K

Trims : 4″ Round, 4″ Square, 8″ Round, 18″ Linear

Ratings : Energy Star, Title 24 JA8, Wet Location, IC, Closet Rated
