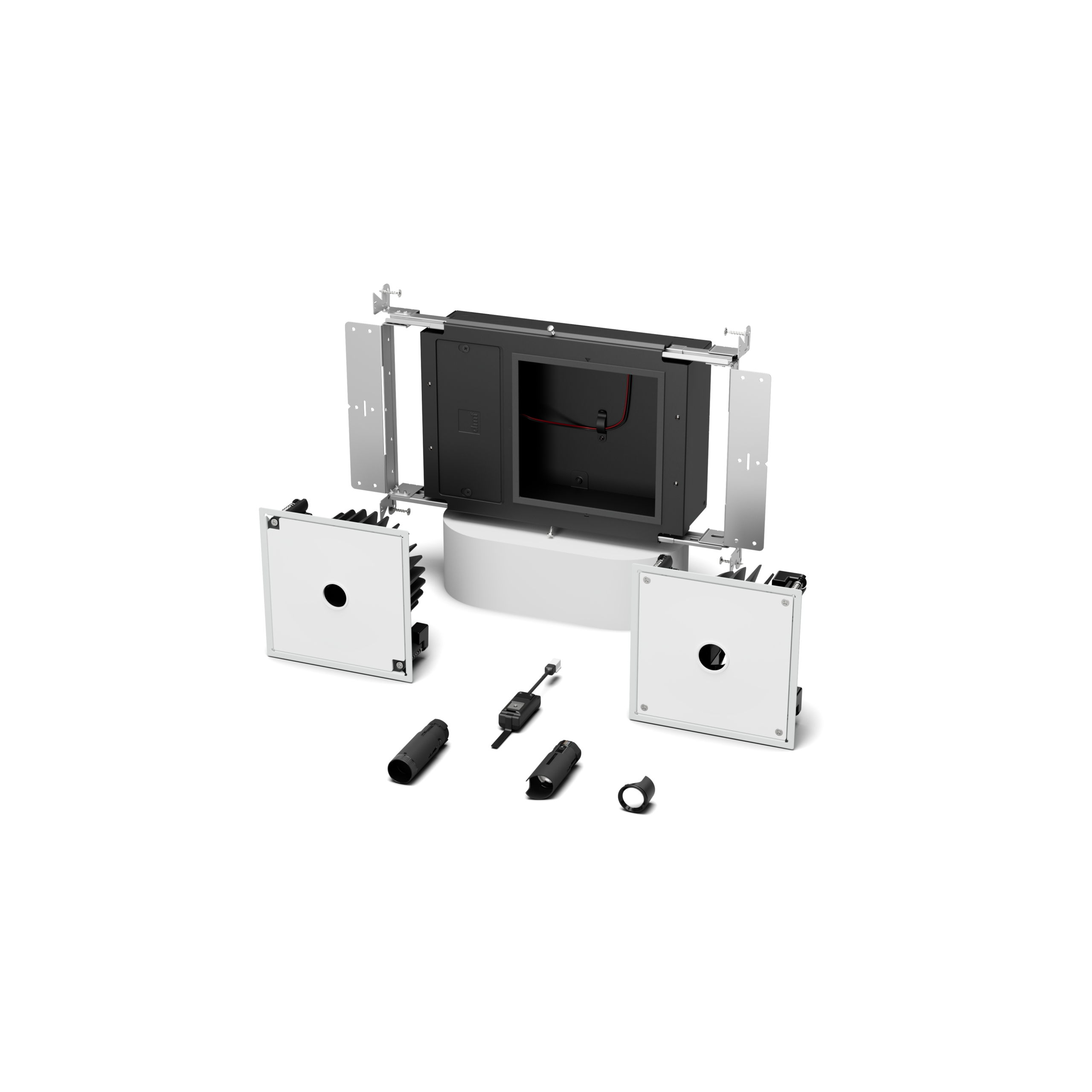

DMF True 1 1-inch aperture recessed LED downlight family components including housing, drivers, and trim options
True 1

Pre-Release: 1″ Downlight Family

Features: Recessed, Adjustable, Warm Dim

Lumens: Static CCT – 1000 lm (15W), Warm Dim – 750 lm (15W),

Color Quality: 93 CRI, 2-step SDCM

Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim

Beam Spread: 30° Spot, 40° Flood, 50° Wide Flood

Dimming: Combo 0-10V/ TRIAC/ELV (1%)

Input: 120/277V

Installation: New Construction, Flangeless Mud-In

Trims: Round

Finish: Black

Rating: Energy Star, Title 24 JA8, Declare Listed, UL Listed for Damp Location, ASTM E283 Certified Air Tight, RoHS Compliant

Warranty: 5 year; 50,000 hours

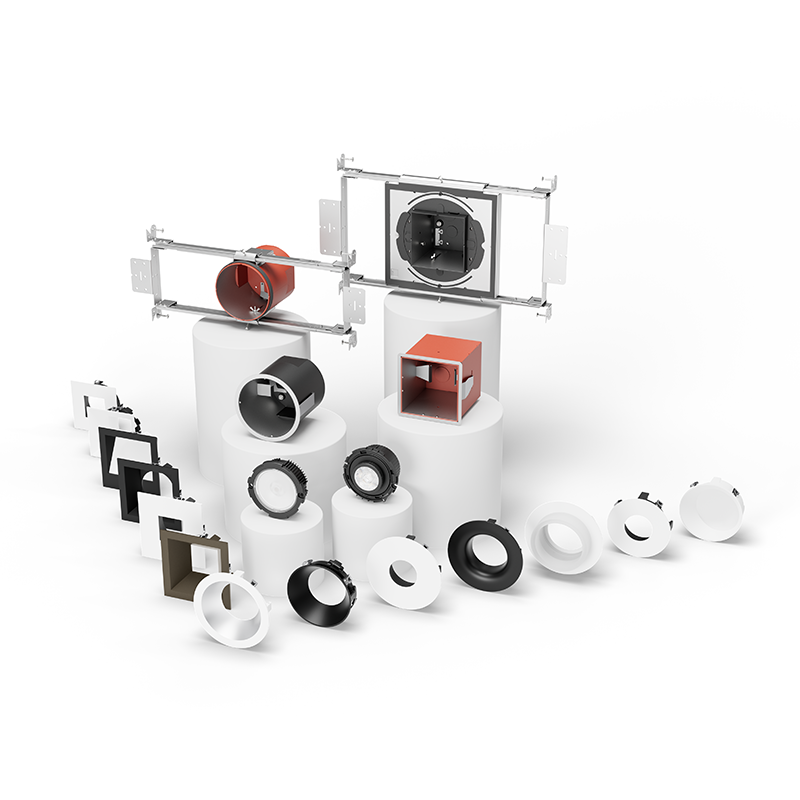

M Series

Most Versatile 4" Lighting Solutions

M Series 4" IC Rated Family

4” Downlight

Features: Recessed, Adjustable, Wall Wash, Warm Dim, Multiple, Emergency, Decorative, Turtle Friendly, Low Profile – 2.5″

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500​ lm (14.3W)

Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White, Turtle Friendly

Trims: Round, Square, Hyperbolic, Pinhole, Wall Wash, Flangeless, Decorative, Emergency, Non-Conductive Dead Front, Coastal Marine Grade

Ratings: Energy Star, Title 24 JA8, Declare Listed, Wet Location, Fire Rated, STC/IIC Sound Rated, Chicago Plenum, IC, NSF/ANSI 2 Splash Zone Safe, IP66

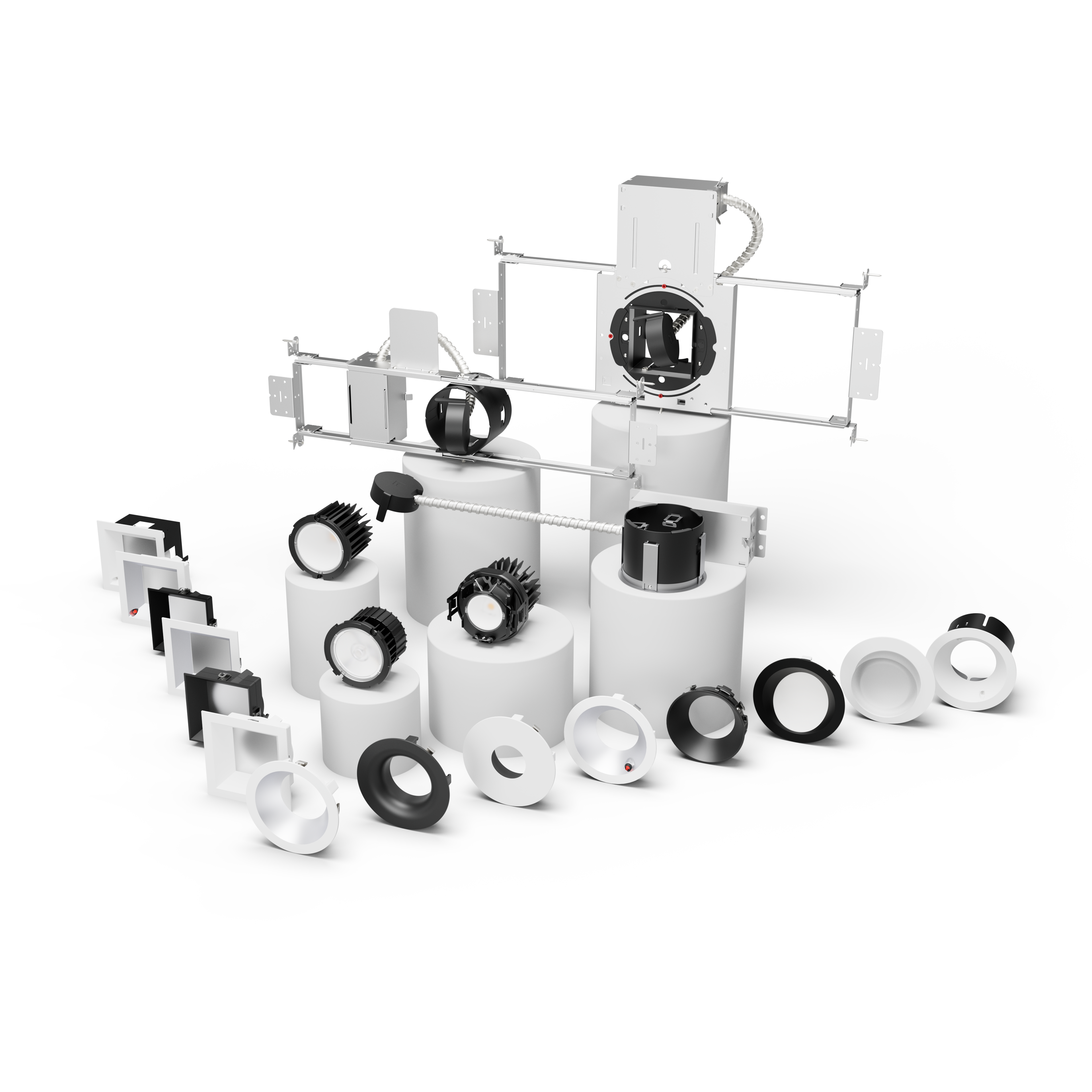

M Series Commercial

4” Downlight

Features: Recessed, Adjustable, Wall Wash, Decorative, Warm Dim, Tunable White, Emergency, Integrated Fixture Control

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W), 2000 lm (24.5W), 2500 lm (27.5W), 3000 lm (34.0W), 3500 lm (40.5W)

Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Round, Square, Hyperbolic, Pinhole, Wall Wash, Flangeless, Decorative, Vandal, Emergency, Coastal Marine Grade

Ratings: Energy Star, Declare Listed, RoHS Compliant, Wet Location, NSF/ASNI 2 Splash Zone Safe Listed, IP66, IK10, Anti-Microbial, IP66

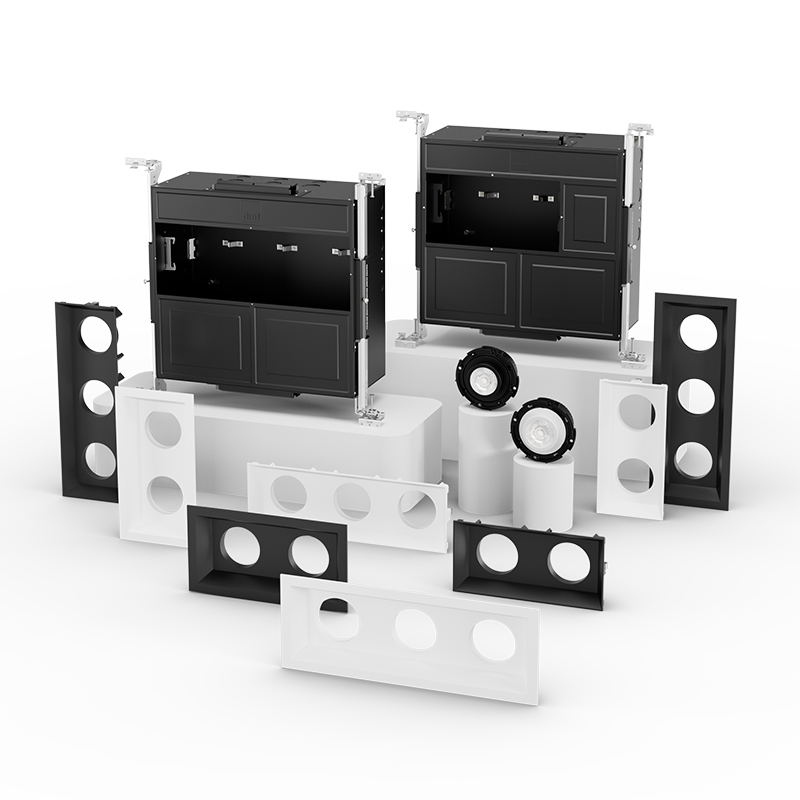

M Series Multiples

4” Multiples

Features: Recessed, Adjustable, Multiple

Lumens: 750 lm (9.5W), 1000 lm (12.5W) per head, Up to 3000lm per Fixture

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Rectangle, Flangeless

Ratings: Energy Star, Title 24 JA8, Declare Listed, Damp Location, NSF/ANSI 2 Splash Zone Safe

M Series Retrofit

4″ 5″ 6″ Retrofit Offerings

Features: Solutions to adapt to existing 4″, 5″, 6″ cans and 4O and 4S junction boxes

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 (14.3W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim (3000K – 1800K)

Trims: Round, Square, Wall Wash, Flangeless, Pinhole, Hyperbolic, Decorative, Baffle

Rating: Energy Star, Title 24 JA8, Declare Listed, Wet Location, Dark Sky, NSF/ANSI 2, RoHS Compliant

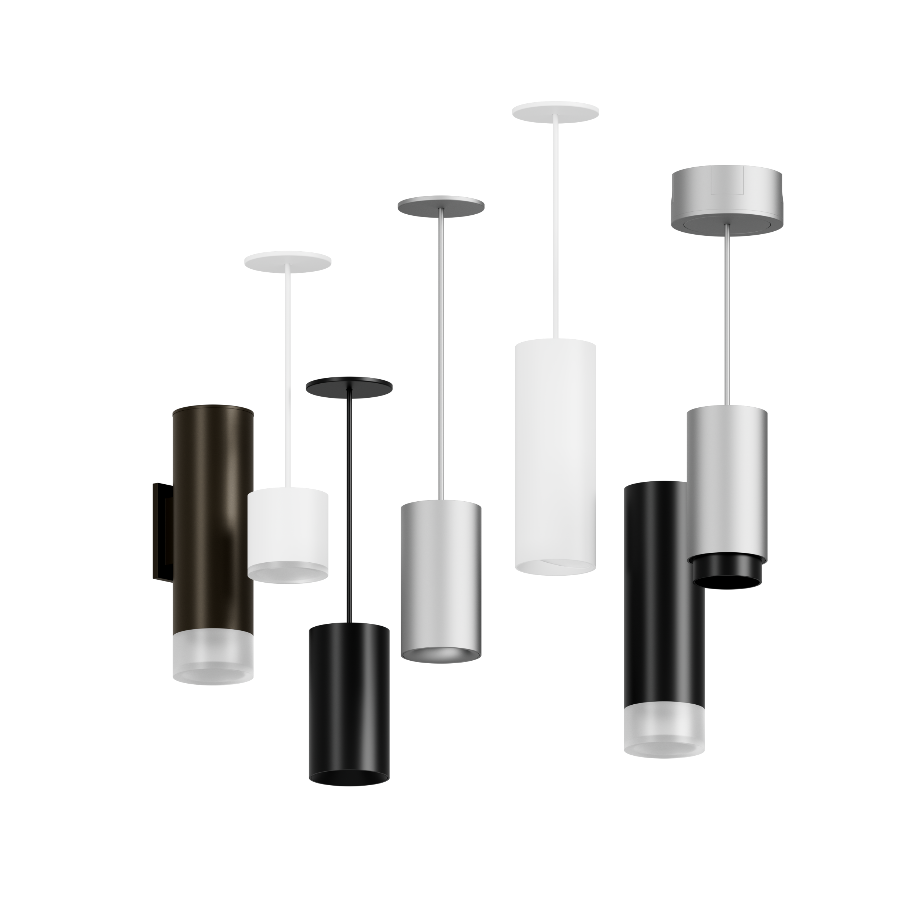

4" Cylinder

4″ Cylinder (Formerly DCC/M Series)

Features: Surface Mount, Pendant, Wall Mount, Adjustable, Up/Down, Warm Dim, Emergency, Turtle Friendly

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W), 2000 lm (24.5W), 2500 lm (37W), 3000 lm (40W)

Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White, Turtle Friendly

Trims: Round, Wall Wash, Snoot, Decorative, Shades

Ratings: Energy Star, Title 24 JA8, Declare, IP65 Wet Location, NSF/ANSI 2 Splash Zone Safe, Dark Sky

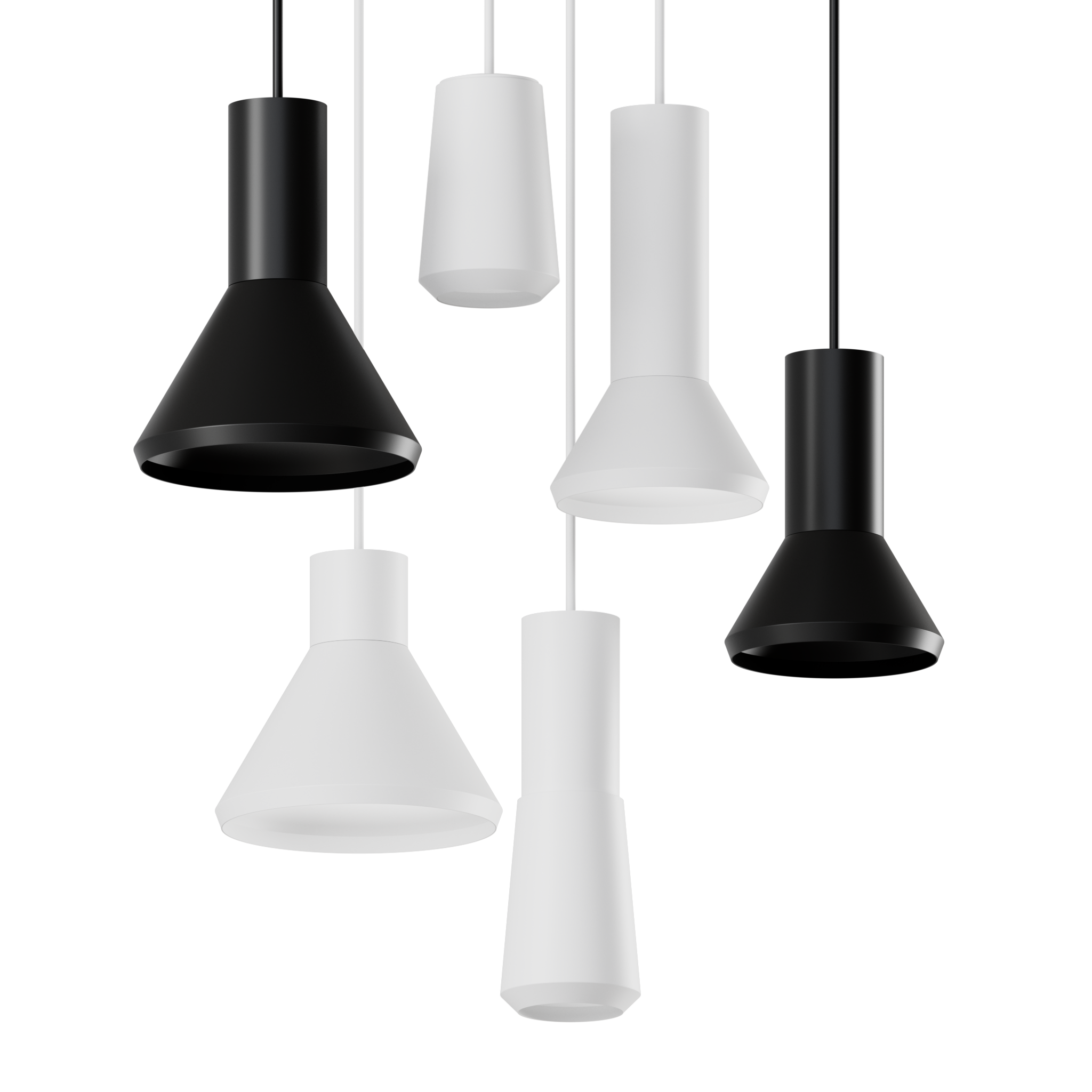

4" Decorative Pendant with Shades

4″ Cylinder with Shades

Features: Unique Shades, Highly Customizable

Size: 4 inch, 8 inch, 12 inch

Suspension Length: Standard: 24″ or 48″; Custom: Up to 156″ (Cord) or 96″ (Stem)

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W), 2000 lm (24.5W), 2500 lm (27.5W), 3000 lm (34W)

Trims:  Narrow Shade, Medium Shade, Wide Shade

Ratings: Energy Star, Title 24 JA8, Declare, NSF/ANSI 2 Splash Zone Safe, Dark Sky, UL Listed

M Series Coastal IP65/Marine Grade Cylinder

4″ Cylinder

Features: Surface Mount, Pendant, Wall Mount, Direct/Indirect, Warm Dim, Turtle Friendly

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W), 2000 lm (24.5W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Turtle Friendly

Trims: Round

Ratings: IP65, Marine Grade Finish, Energy Star, Title 24 JA8, Declare Listed, Dark Sky Sea Turtle Sensitive Approved, RoHS Compliant
X Series

High Performance 2" Lighting Solutions

X Series

2” Downlight

Features: Recessed, Adjustable, Wall Wash, Decorative, Warm Dim, Tunable White, Turtle Friendly

Lumens (Downlight): 500 lm (9.5W), 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W)

Lumens (Adjustable): 500 lm (9.5W), 750 lm (9.5W), 1000 lm (12.5W)

Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White, Turtle Friendly

Trims: Round, Square, Wall Wash, Flangeless, Pinhole, Hyperbolic, Decorative

Rating: Energy Star, Title 24 JA8, Declare Listed, Wet Location, Chicago Plenum, IC, Dark Sky, NSF/ANSI 2

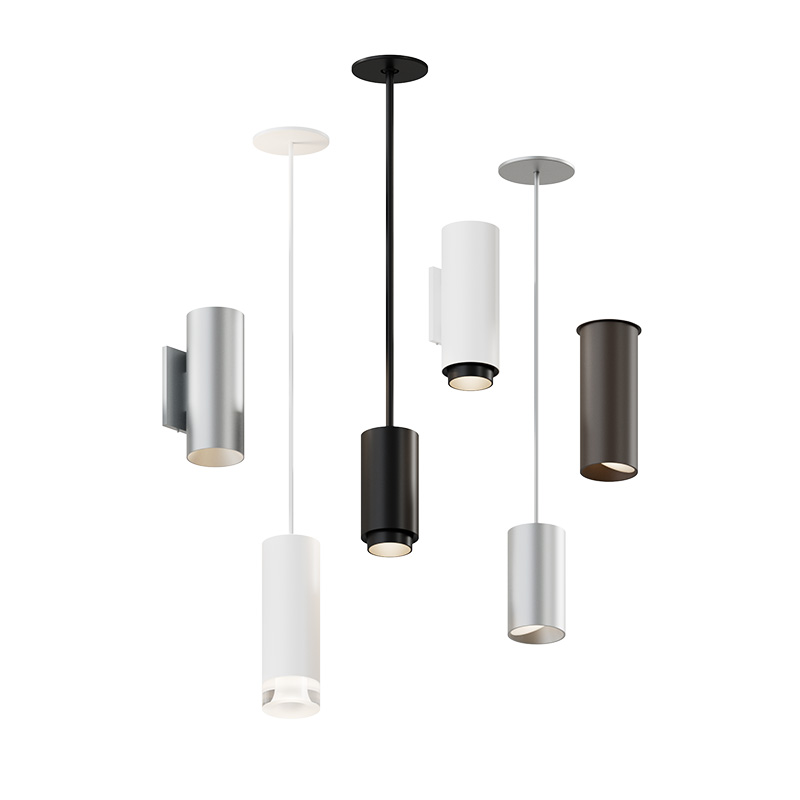

X Series 3" Cylinder

3″ Cylinder

Features: Surface Mount, Pendant, Wall Mount, Up/Down, Wall Wash, Warm Dim, Tunable White, Turtle Friendly

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W)

Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White, Turtle Friendly

Trims: Round, Snoot, Wall Wash, Decorative

Ratings: Energy Star, Title 24 JA8, Wet Location

X Series 3" Decorative Pendant with Shades

3″ Cylinder with Shades

Features: Unique Shades, Highly Customizable

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Narrow Shade, Medium Shade, Wide Shade

Ratings: Energy Star, Title 24 JA8, Declare, NSF/ANSI 2 Splash Zone Safe, Dark Sky, UL Listed

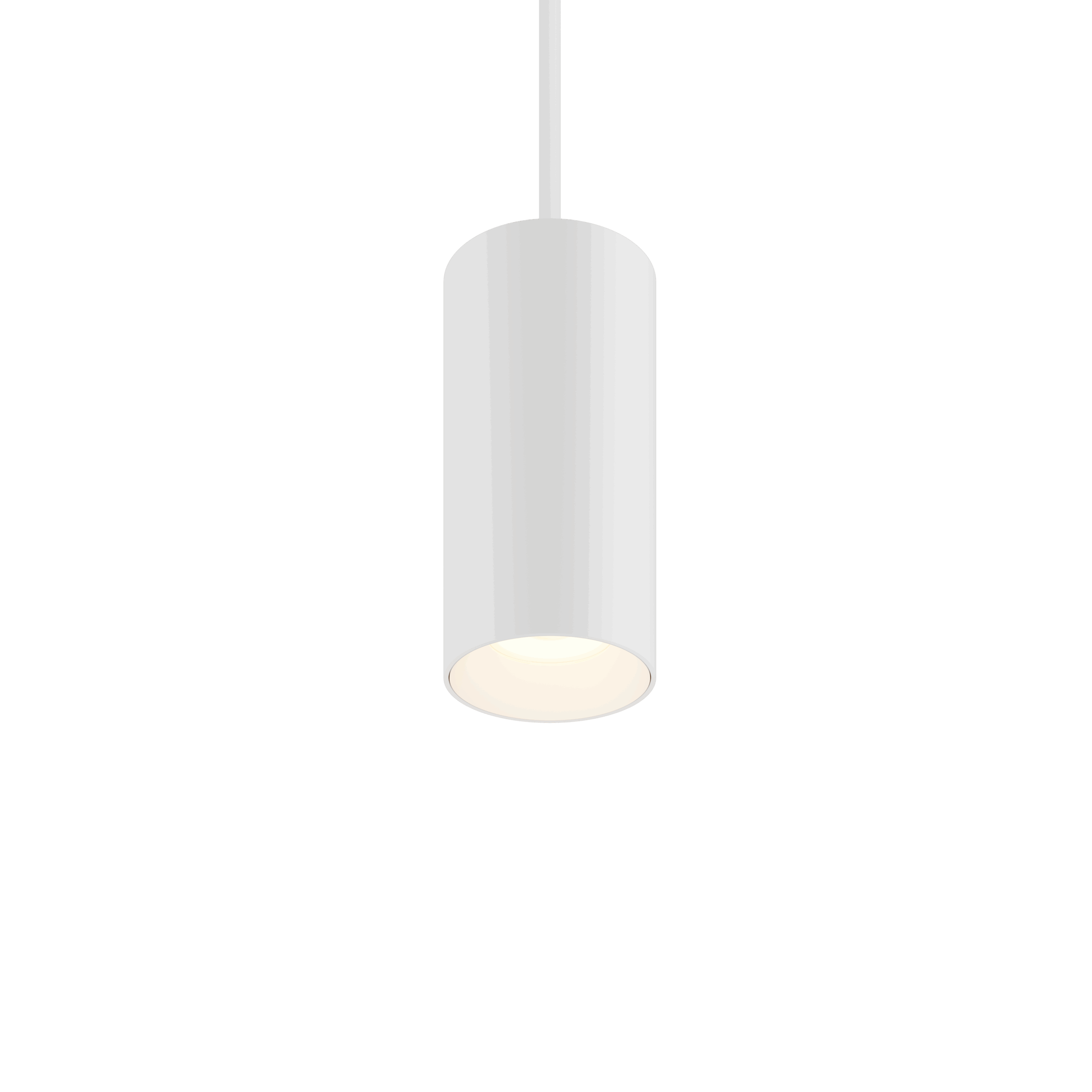

X Series Coastal IP65/Marine Grade Cylinder

3″ Cylinder

Features: Surface Mount, Pendant, Wall Mount, Direct/Indirect, Warm Dim, Turtle Friendly

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Turtle Friendly

Trims: Round

Ratings: IP65, Marine Grade Finish, Energy Star, Title 24 JA8, Declare Listed, Dark Sky Sea Turtle Sensitive Approved, RoHS Compliant

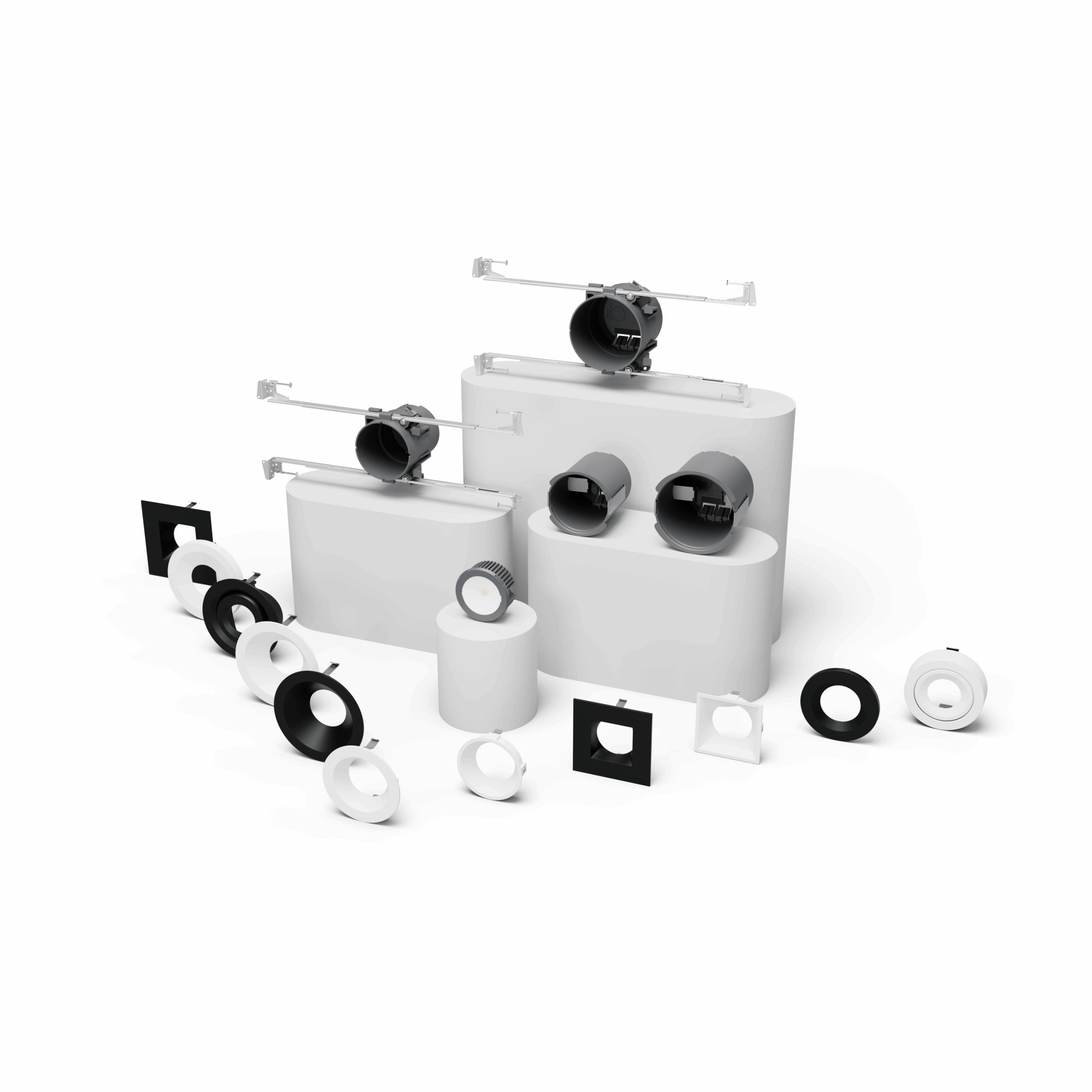

H Series

High Value 3" & 4" Lighting Solutions

H Series

3″ and 4″ Downlight

Features: Recessed, Surface Mount, Adjustable, Natural Warm Dim

Lumens: 350 lm (5W), 750 lm (9W), 950 lm (12W)

Color Temperature: Natural Warm Dim 3000K-2200K & 2700K-1800K

Trims: Round, Square, Flush, Adjustable

Ratings: Energy Star, Title 24 JA8, Declare Listed, Wet Location, IC, NSF/ANSI 2

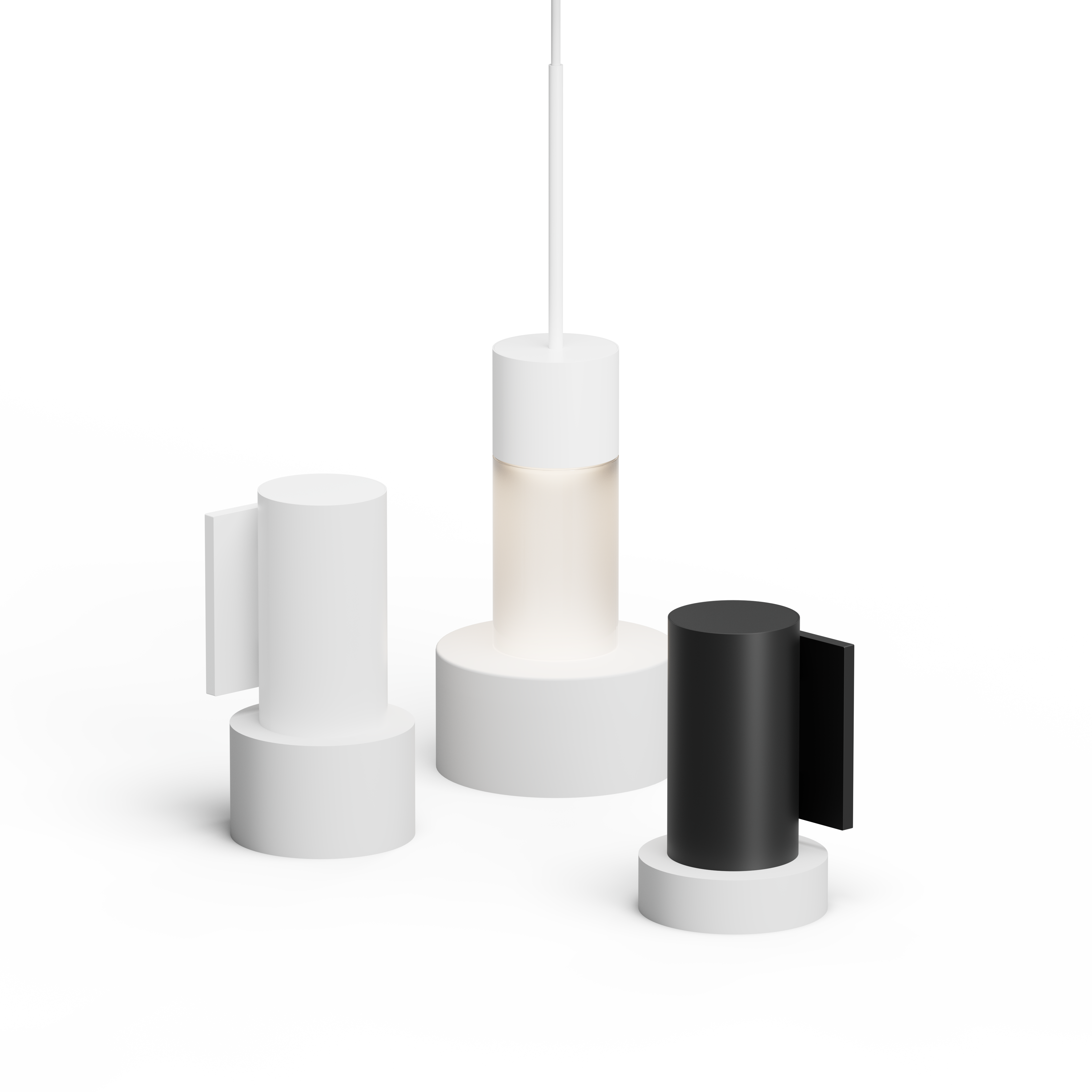

H Series Cylinder

3″ Cylinder

Features: Pendant, Wall Mount, Natural Warm Dim

Lumens: 350 lm (5W), 750 lm (9W), 950 lm (12W)

Color Temperature: 2700K, 3000K, Natural Warm Dim 3000K-2200K

Trims: Round Standard / 5.5″ Decorative Trim

Ratings: Energy Star, Title 24 JA8, Declare Listed, IP65 Wet Location (Wall Mount), NSF/ANSI 2

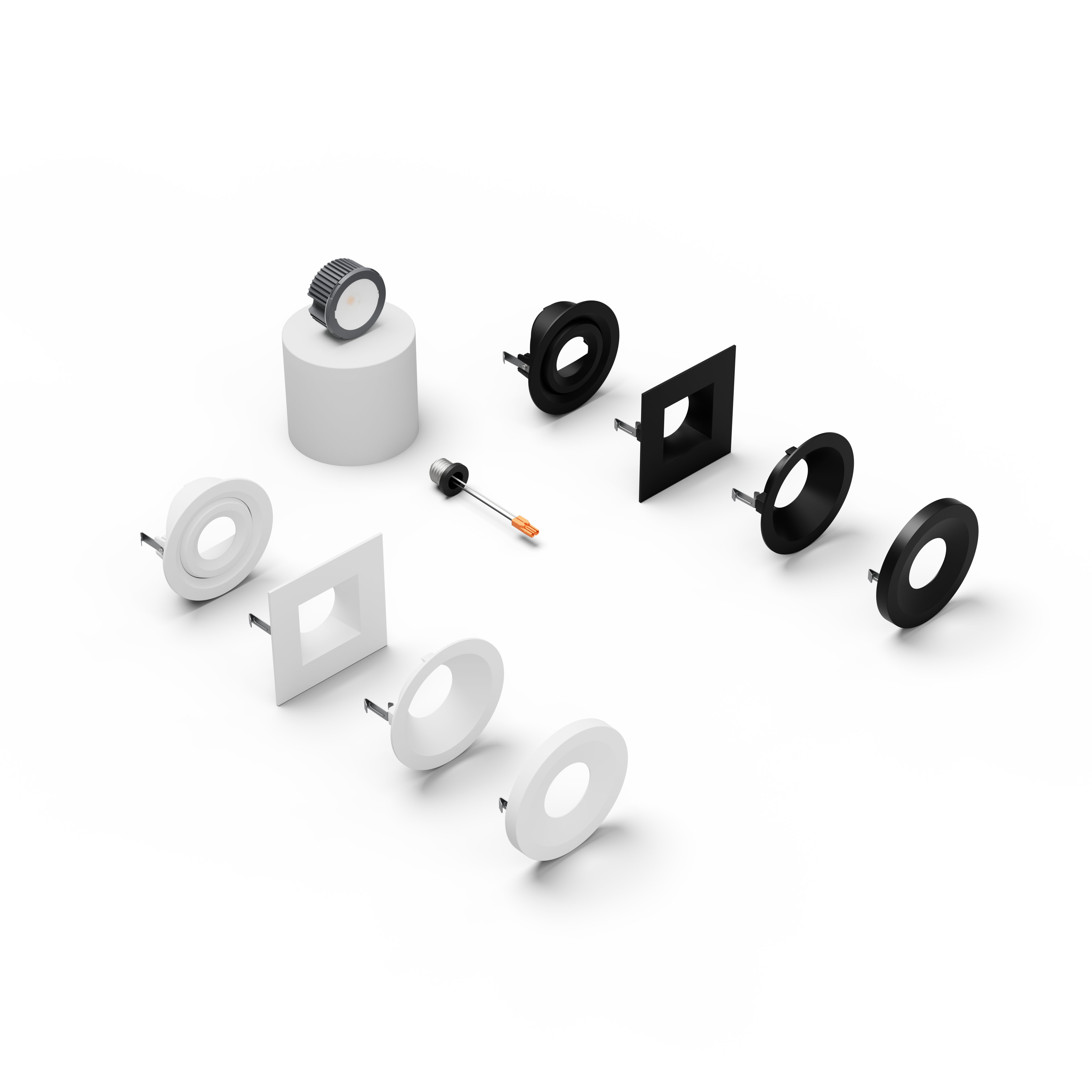

H Series Retrofit

4″ Retrofit Offerings

Features: Solutions to adapt to existing 4″ housings and 4O junction boxes

Lumens: 350 lm (5W), 750 lm (9W), 950 lm (12W)

Color Temperature: 2700K, 3000K, Natural Warm Dim 3000K-2200K

Trims: Round, Square, Flush, Adjustable

Ratings: Energy Star, Title 24 JA8, Declare Listed, Wet Location

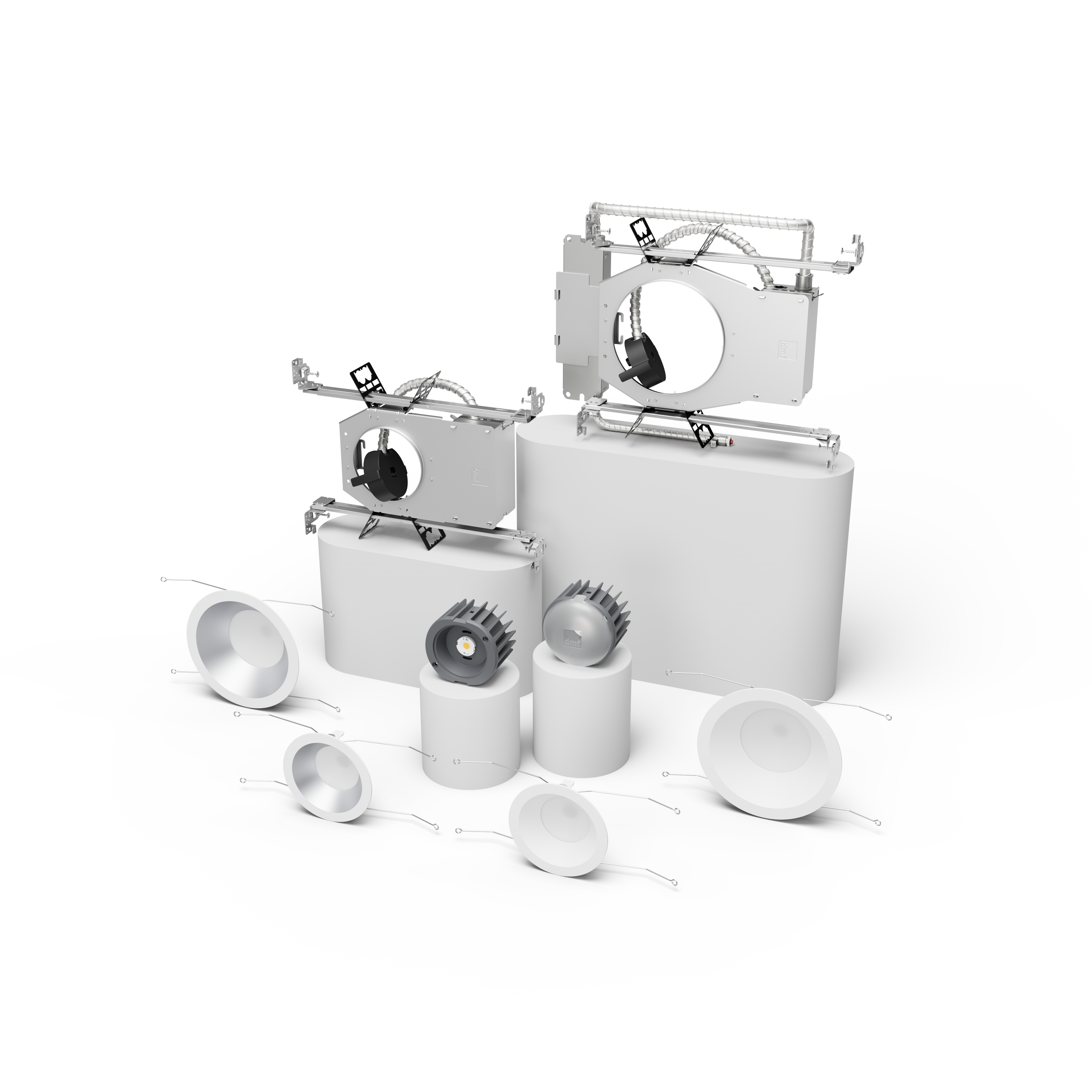

C Series

Quick Shipping, Simple 4" & 6" Lighting Solutions

C Series

4″ and 6″ Downlight

Features: Recessed, Non-Conductive Dead Front, DMF LightSpeed

Lumens: 1000 lm (13.6W), 1500 lm (17W), 2000 lm (24.5W)

Color Temperature: 3000K, 3500K, 4000K

Trim: Round

Ratings: Energy Star, Declare Listed, Wet Location, NSF/ANSI 2, UL Listed, RoHS, Non-Conductive Dead Front

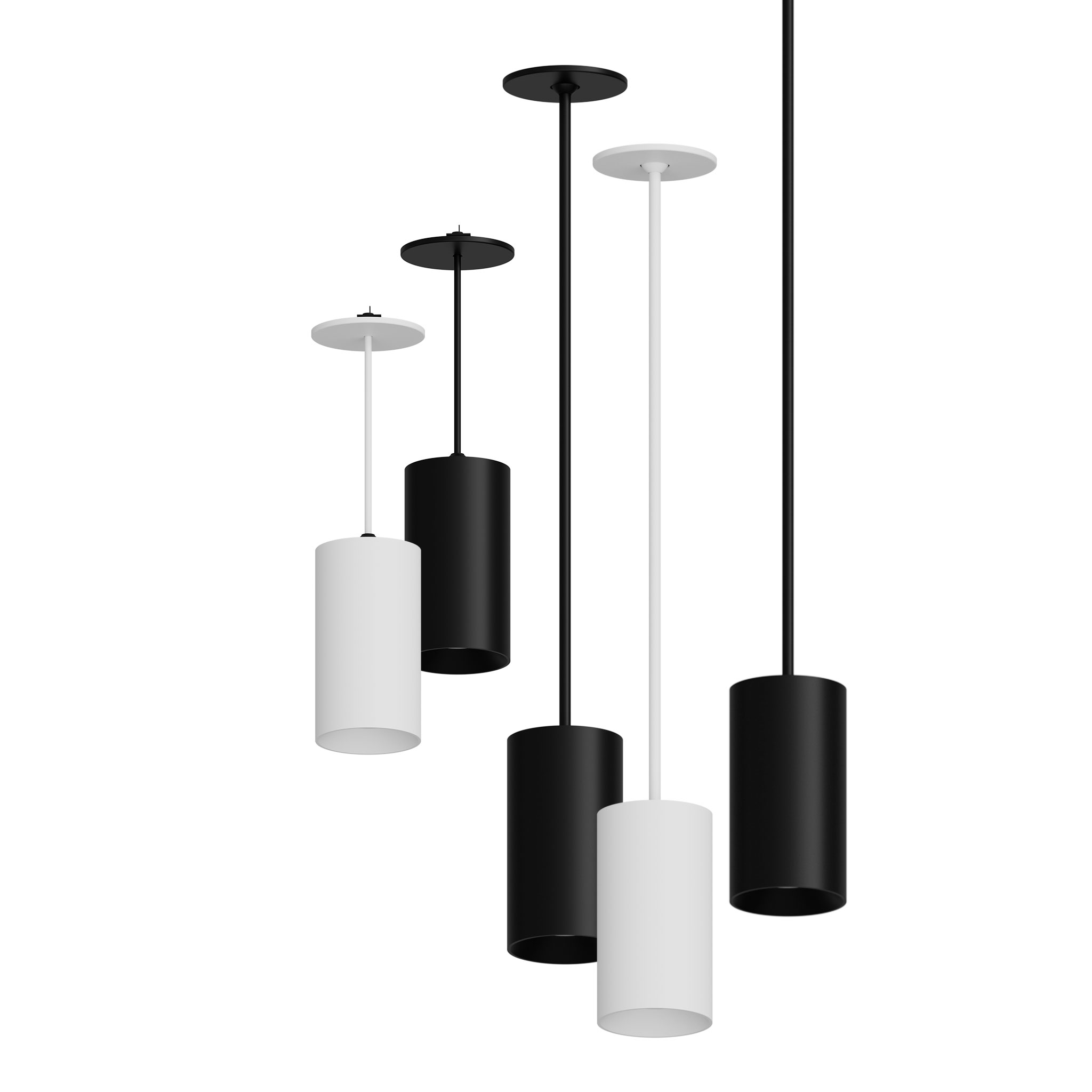

C Series Cylinder

4″ Cylinder

Features: Pendant, Cord or Stem Mount, DMF LightSpeed

Lumens: 1000 lm (13.6W), 1500 lm (17W), 2000 lm (24.5W)

Color Temperature: 3000K, 3500K, 4000K

Trim: Standard

Ratings: Energy Star, Declare Listed, NSF/ANSI 2, UL Listed
Surface

Slim Profile, Junction Box Solutions

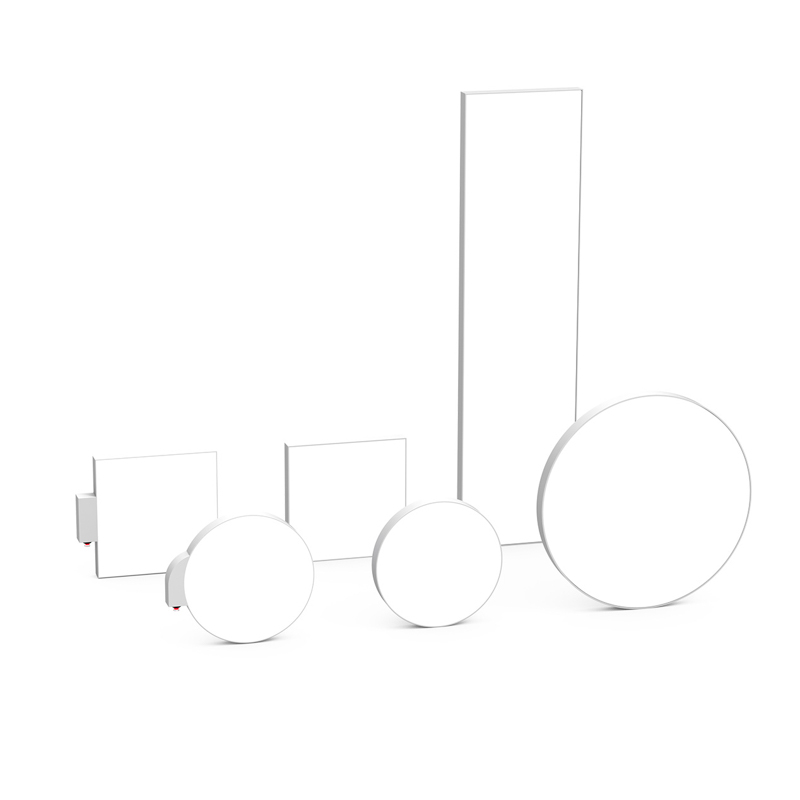

S Series

Surface Mount

Features : Surface Mount, Emergency

Lumens : 750 lm (9W), 1000 lm (12W), 1500 lm (17W)

Color Temperature : 2700K, 3000K, 3500K

Trims : 4″ Round, 4″ Square, 8″ Round, 18″ Linear

Ratings : Energy Star, Title 24 JA8, Wet Location, IC, Closet Rated

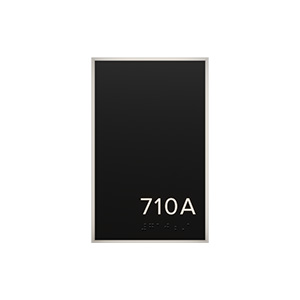

A Series

Illuminated Signage

Features: Surface Mount

Lumens: 50 lm (3W)

Color Temperature: 2700K, 3000K

Ratings: Energy Star, Title 24, Damp Listed, ADA Compliant

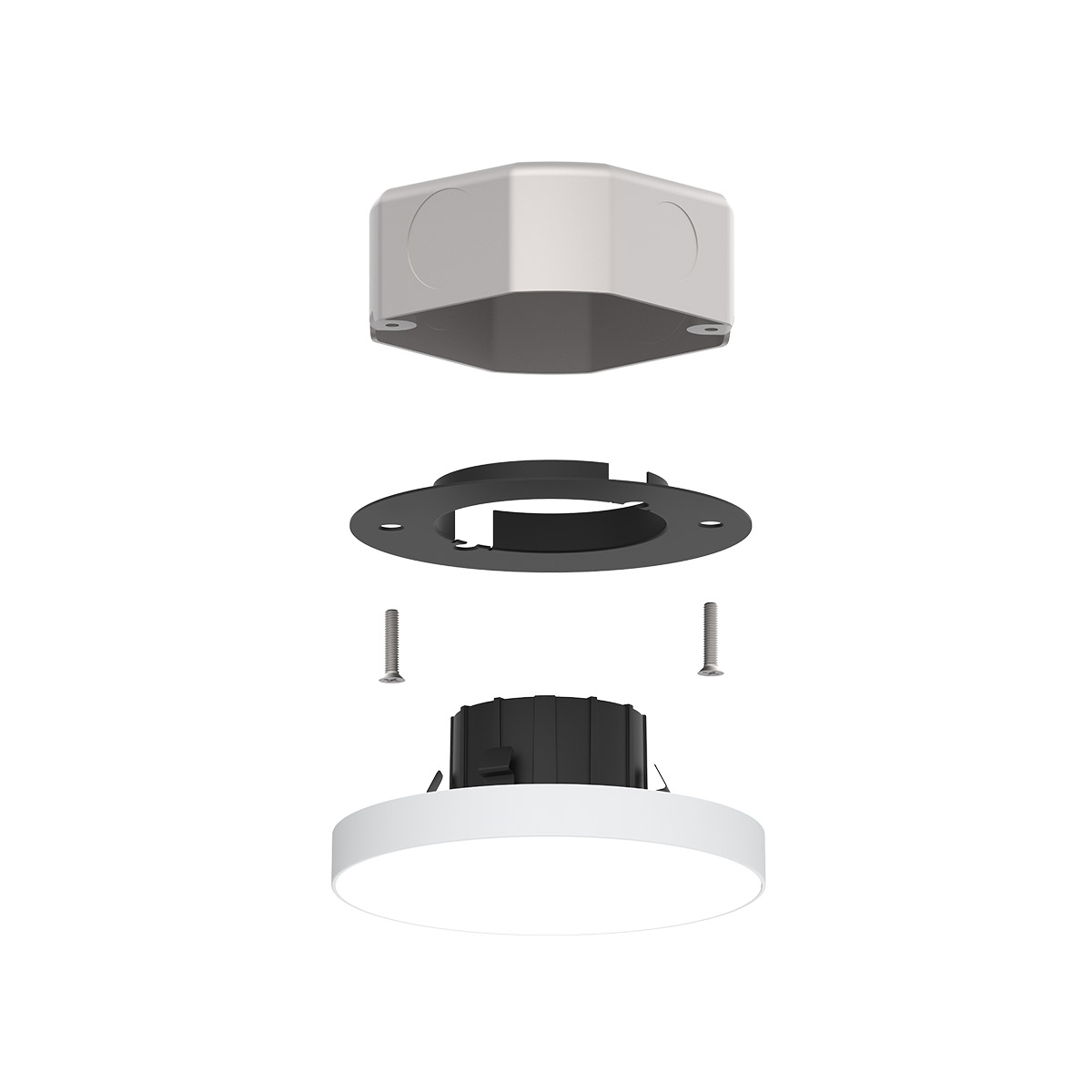

S Series Retrofit

Surface Mount Retrofit Offerings

Features: Solutions to adapt to existing 3O, 4O, and 4R junction boxes

Lumens : 750 lm (9W), 1000 lm (12W), 1500 lm (17W)

Color Temperature : 2700K, 3000K, 3500K

Trims : 4″ Round, 4″ Square, 8″ Round, 18″ Linear

Ratings : Energy Star, Title 24 JA8, Wet Location, IC, Closet Rated
